Machine Component

1) Main packing machine, 2) 2 head screw weigher, 3) z-type material conveyors, 4)  output conveyor.

Main packing machine :Fully complete the production process of feeding, metering, filling, bag making, date printing and product output.

 Z-type material conveyor：The material is raised to the two-head screw electronic scale at a uniform speed, controlled by the electric eye sensor to ensure sufficient material.

Two-head screw electronic scale: It is designed by screw principle and electronic scale weighing principle, mainly for ice weighing. Using servo motor control, stable operation and accurate measurement.

Output conveyor :The finished product conveyor is installed at the product outlet of the main machine of the packaging machine, which allows the finished product to be transported away from the bottom of the main machine, avoiding product accumulation and blockage and causing downtime.

Machine Features

This machine is a professional packaging machine for ice cubes, ice granule and broken ice. Special design is adopted to solve the problem of sealing due to the characteristics of ice of low temperature, humidity, liquefaction and fog. It can pack ice cubes smoothly and run stably. We believe that our ice cubes packing machine will be provided you with energy-efficient, cost-effective and environment-friendly solutions.

The feeder vibrates and feeds the materials to the screw type electronic scale for automatic weighing, and then fills the materials with the target weight into the packaging machine, and then the finished product conveyor outputs the packed bags. It can realize automatic lifting, measuring, forming and sealing bags, date coding, and output a series of automatic packaging processes.

Standard pillow bag

First of all, we must know the material, bag size and weight, these things are very important to the packaging machine. The designer will provide a schematic diagram and a salesperson to provide a quotation plan based on the customer's material, weight and bag size. This newly designed ice pack machine. Common questions from customers are as follows.

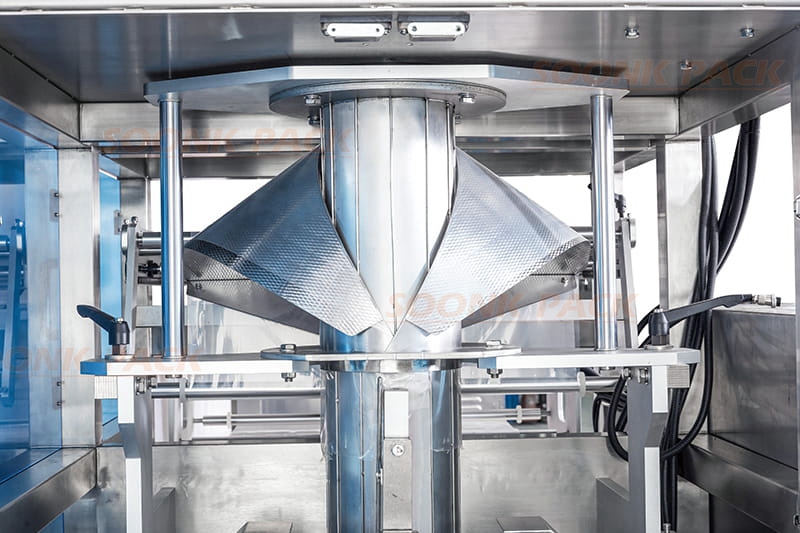

1. How to choose a suitable packaging film? This is a machine for packing ice. It can be packed with composite film or PE film. The suggestion is to use PE film, which is tough and the bag is not easy to break. 2. Regarding the size of the bag, what should the customer do if there is no bag size? The suggestion is to experiment with local markets and supermarkets to see which bag type and the weight you want to pack are the most popular. Only the width of the bag is fixed, because the length of the bag is adjustable. 3.. What is the maximum bag size of this machine? The bag length of this machine is 100-500mm, and the maximum width is 180-350mm. 4. Is the more shapers better, so that more bag sizes can be packed? A set of machines can produce up to 3 formers, because the technology of replacing the formers is complicated, and changing the formers multiple times will cause the bag to have deviations. 5. How to choose the material of the machine? Our machine has two materials, one is stainless steel and carbon steel. If you are pursuing high quality, choose stainless steel. If your financial budget is difficult, carbon steel is recommended. Although the appearance of the machine is carbon steel, the parts that come into contact with the material are made of stainless steel. 6. What is the error? Generally speaking, it is ±1% (depending on the characteristics of the material) 7. How many days does it take to produce a machine? The production time is about 30-45 days, because our machines are installed and debugged at the same time, so as to ensure high quality. 8. The customer also asked how long is the machine warranty period? We offer 12 months warranty, starts from the issue date of bill of loading and life time maintenance service. 9. Customers most often ask how to install and operate the video? You can't worry about this at all. Our company needs to provide user manuals, installation videos and operation of the machine, you can provide technical services when you encounter problems.
