Powder packing machine's companent:

1) Mian packing machine 2)  Auger filler

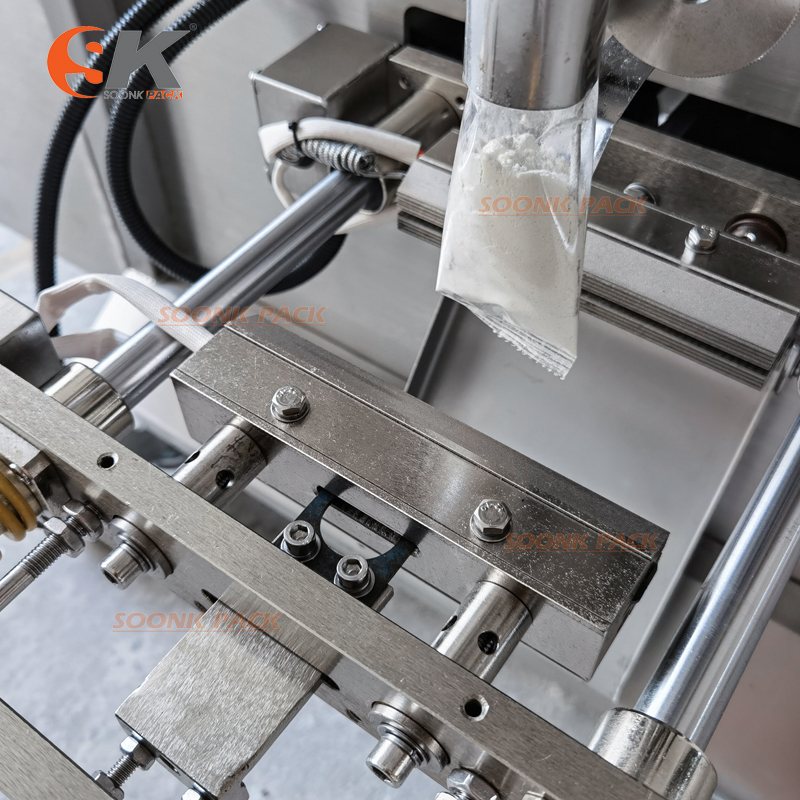

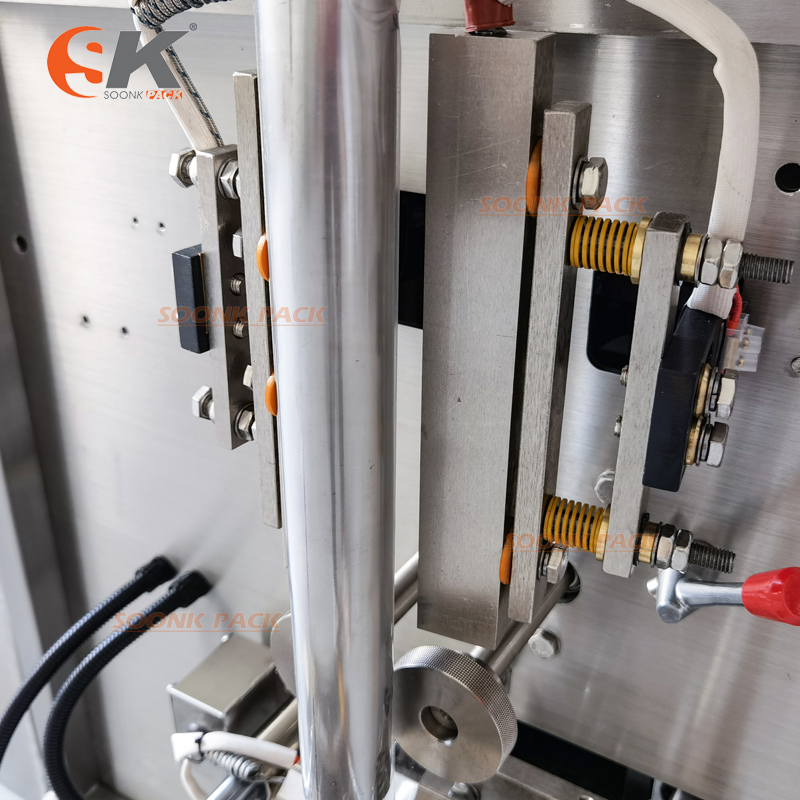

Some detaied pcitures of Powder packing machine

.

Product introduction:

This machine is mainly used for packaging powder and powder materials in small bags of less than 150 grams, such as pesticides, fertilizers, medicines, veterinary drugs, facial mask powder, milk powder, condiments, etc. It can automatically complete bag making, metering, blanking, sealing, and sorting. Cutting, counting, batch number printing and other functions, advanced microcomputer controller, servo-driven motor control bag length, stable performance, convenient adjustment, accurate detection; screw filling is suitable for materials with poor fluidity, fast, accurate and economical , Practical advantages, in line with national GMP standards. By changing the thermal structure, the packaging bag can be made into three-side seal, four-side seal, pillow seal and other shapes.

Introduction of automatic powder packaging machine:

The powder packaging machine is a high-intelligence back-seal small powder packaging machine, which integrates electromechanical integration and full Chinese (or English) display. It uses an advanced microcomputer chip to control the photoelectric tracking correction system, which can save manpower and material resources, improve work efficiency, and back-seal powder packaging The machine is suitable for quantitative packaging of uniform fine particles, non-sticky powder materials (biological fertilizer, feed, additives, milk powder, pesticides, veterinary drugs) and other materials.

Performance characteristics of powder packaging machine：

1. All stainless steel exterior, easy to clean, in line with GMP requirements.

2. Optional ribbon or ink wheel automatic coding machine, 1-3 rows of batch numbers, shelf life.

3. Within the rated range, the types of packaging materials can be adjusted randomly according to customer needs to achieve one machine with multiple functions, simple and easy to operate

4. .The back-seal small powder packaging machine adopts programmable controller control, and is equipped with Chinese and English fonts, man-machine interface, so that the equipment is simple to operate, easy to adjust, and has a high degree of automation.

5. The back-seal small powder packaging machine uses an intelligent temperature controller to control the horizontal and vertical sealing temperature, so that the sealing is firm, the airtightness is good, the bag shape is flat and exquisite, and the packaging efficiency is high.

6. The bag-making system uses stepper motor subdivision technology to automatically track and locate the color code of the packaging bag, and easily complete the operation and adjustment of the bag-making process, with fast speed, stable operation and low noise.

7. The whole set of small vertical soda powder quantitative packaging machine is compact in design, firm and not shaking, simple and easy to operate。

8. The sealed oblique screw metering device is used for metering, which effectively prevents dust from being raised during metering and polluting the working environment.

9. The soda powder quantitative packaging machine automatically completes all the processes of material quantification, bag making, product filling and production date printing, product sealing and cutting and output at one time, which effectively saves costs and improves packaging efficiency.

10. The powder quantitative packaging machine runs stably, with fast speed, high precision, low noise and low failure rate.

11. Adopt PLC control and touch screen man-machine interface control system to make it easy to operate.

How to maintain good quality powder powder packaging machine：

1. The first step: Lubrication. Lubricate the gear meshes, bearing oil holes and moving parts of the powder packaging machine regularly. It is strictly forbidden to run the reducer without oil. When lubricating oil, be careful not to put the oil tank on the rotating belt to prevent slipping and loss of rotation or premature aging of the belt and damage

2. Then the second step: maintenance. Before using the powder packaging machine, check the screws of each part to ensure that there is no looseness, otherwise, it will affect the normal long-distance rotation of the whole machine. The electrical parts should be waterproof, moisture-proof, and Anti-corrosion and anti-mouse to ensure that the inside of the electric control box and the wiring terminals are clean to prevent electrical failure. After the shutdown, the two heat sealers should be in the open position to prevent the packaging materials from being scalded.

Finally, the third step: cleaning. After the shutdown, the metering part should be cleaned in time, and the heat sealer body should be cleaned frequently to ensure that the sealing lines of the packaged product are clear. The scattered materials should be cleaned up in time to facilitate the cleanliness of the machine parts. So as to better extend its service life, and at the same time clean the dust in the electric control box frequently to prevent electrical faults such as short circuit or poor contact.

Operation method of powder packaging machine:

1. Install the machine: first install the machine and the packaging film, install the packaging paper on the bracket, and try to make the edge of the packaging paper and the gap between the support frame vertical and parallel.

2. Power on: After installing the machine and placing it flat, plug in the power and turn on the power switch and wait for the machine to work. The power plug must be connected to a plug with a grounding wire.

3. Setting parameters: set the length of the packaging bag, temperature parameters and the number of grams of blanking.

4. Pour the materials: Pour the materials into the hopper and press start to work.

5. Automatic packaging: the machine automatically weighs, blanks, seals, and cuts into bags, and the packaging is formed at one time

Suitable for pouch packaging of powder products with relatively good fluidity, such as packaging milk powder, protein powder, soybean powder, Chinese medicine powder, seasoning powder, flour, rice roll, coffee powder, pepper powder, corn powder, starch, enzyme, putty powder , And other powders and powder products.

The bag type of the packaging machine in this video is a back-seal bag type. The picture below is a physical display.

Powder packaging machine faults and solutions：

Powder packaging machine is a general term for packaging equipment for packaging powder products. There are many kinds of powder packaging machines, which can be involved in many industries such as industry, food, agricultural and sideline products. The following are the common faults and maintenance methods of a few more common powder packaging machines:

1. The powder packaging machine has the phenomenon that the spiral does not move (that is, the stepper motor is blocked) or the measurement is good and sometimes bad:

(1) There are sundries in the material that cause excessive resistance or the material cup is eccentric. In this case, please turn off the machine, remove the material cup, clear the sundries or adjust the position of the material cup.

(2) The operator puts the bottom of the container against the outlet of the material cup and can change the operation method.

2. Inaccurate measurement after changing packaging specifications or materials, which may be:

(1) The position of the agitator knife is not suitable and needs to be adjusted so that the lower end of the knife is about 10-15mm away from the spiral.

(2) If there is leakage after filling, add anti-leakage net.

3. The stirring motor does not run:

(1) Due to the thermal overload relay tripping.

(2) The power supply lacks phase

4. The stepping motor does not work normally or does not work:

(1) The grid voltage fluctuates too much, and the drive power alarm light is on;

(2) The running frequency is too high, causing the stepping motor to lose step.
