Machine Component

1) Main packing machine, 2) volumetric cup metering device, 3) output conveyor, 4) rotary table.

Main packing machine:Fully complete the production process of feeding, metering, filling, bag making, date printing and product output.

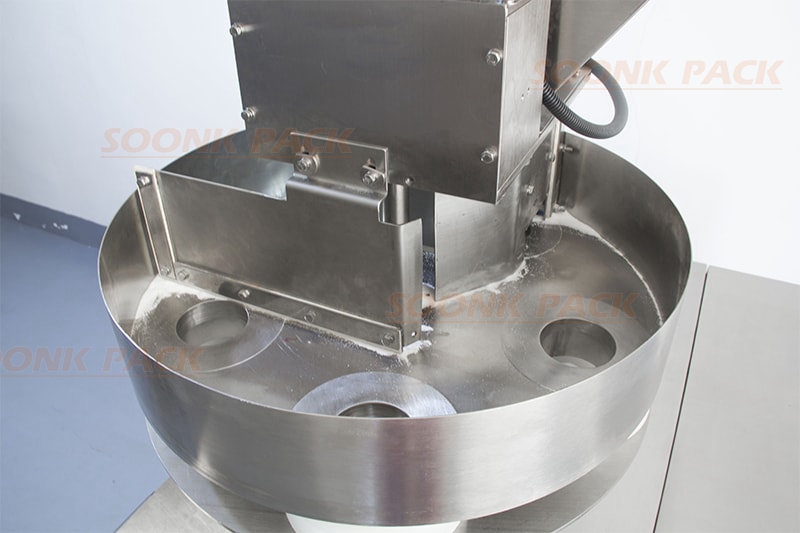

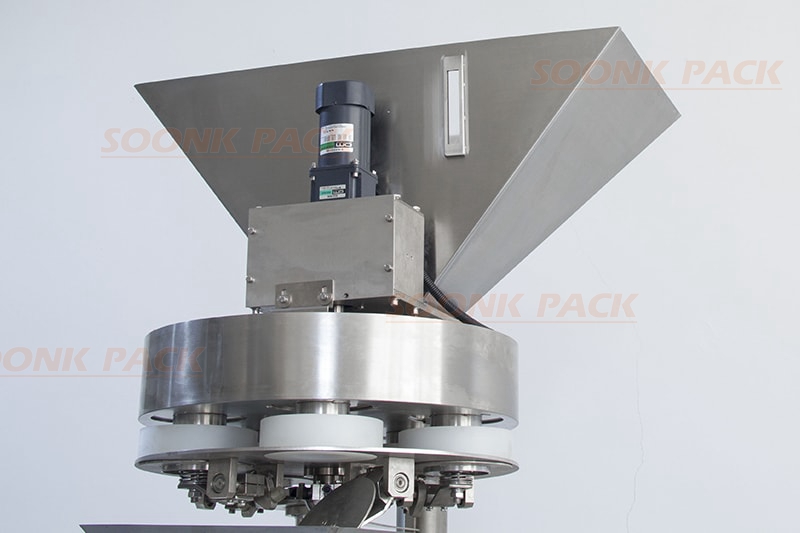

Volumetric cup measuring device: This measuring cup is a customized cup, and the related measuring cup is customized according to the weight of each package. You can also choose the universal cup, which can be different weights according to your needs.

The finished product conveyor: It is installed at the product outlet of the main machine of the packaging machine, which allows the finished product to be transported away from the bottom of the main machine, avoiding product accumulation and blockage and causing downtime.

 Rotary table:It is suitable for conveying finished packaging bags to post-packaging testing equipment or packaging platform.

Machine Features

1. Fully complete the production process of feeding, metering, filling, bag making, date printing and product output.

2. The design of the whole machine is simple, reasonable, stable in performance, easy to operate and convenient for daily maintenance.

3. The metering cups device can be designed according to the material volume, and the replacement is convenient.

The material is manually loaded into the volumetric cup metering device, and the volumetric cup metering device completes the weight measurement. And then the material with the target weight is filled into the packaging machine. The machine can realize automatic lifting, measuring, forming sealing bag, date coding, a series of automatic packaging process.

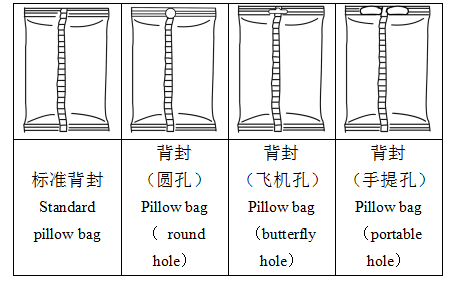

Standard pillow bag can be equipped with punching devices (butterfly holes, round holes, portable holes)

We need to know the material, bag size and weight, these things are very important to the packaging machine. The designer will provide a schematic diagram and a salesperson to provide a quotation plan based on the customer's material, weight and bag size. For Stainless Steel Automatic Salt Packaging Machine With Volumetric Cup, customers' common questions are as follows.

1. Need to judge whether the material is suitable for the machine? It is best to send the materials and packaging film to our company for free testing. 2. Regarding the size of the bag, what should the customer do if there is no bag size? The suggestion is to experiment with local markets and supermarkets to see which bag type and the weight you want to pack are the most popular. 3. Is the more shapers the better, so that more bag sizes can be packed? A set of machines can produce up to 3 formers, because the technology of replacing the formers is complicated, and changing the formers multiple times will result in the bag deviation. 4. How to choose the material of the machine? Our machine has two materials, one is stainless steel and carbon steel. If you are pursuing high quality, choose stainless steel. If your financial budget is difficult, carbon steel is recommended. Although the appearance of the machine is carbon steel, the parts that come into contact with the material are made of stainless steel. 5. What is the error? Generally speaking, it is ±1% (depending on the characteristics of the material) 6. How many days does it take to produce a machine? , The production time is about 20-30 days, because our machines are installed and debugged at the same time to ensure high quality. 7. The customer also asked how long is the machine warranty period? We offer 12 months warranty,starts from the issue date of bill of loading and life time maintenance service. 8. Customers ask most how to install and operate the video? You can't worry about this at all. Our company needs to provide user manuals, installation videos and operation of the machine, you can provide technical services when you encounter problems.
